Product Line
Various shapes and colors are available for a wide variety use such as exterior decks, louvers, benches, terraces.
Deck

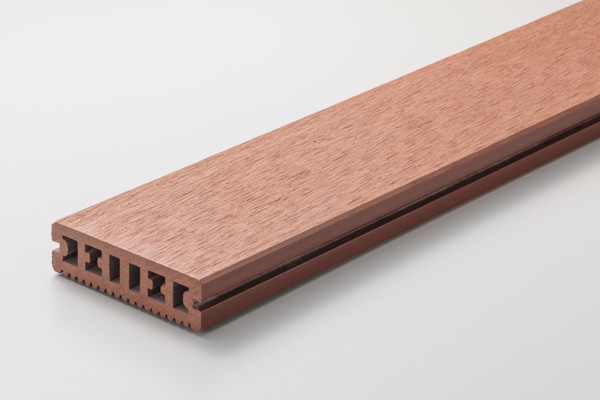

Product No.：MKV01-100*25S
Size：W100mmｘH25mm
Standard length：2000mm
Ref.Weight：2.2kg/m

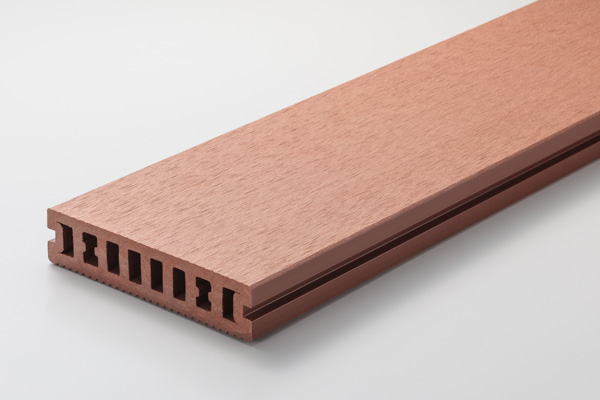

Product No.：MKV02-145*30S
Size：W145mmｘH30mm
Standard length：2000mm
Ref.Weight：3.75kg/m

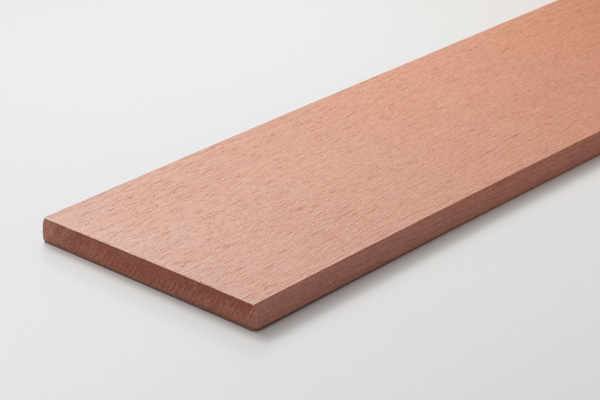

Product No.：MKV03-150*13M
Size：W150mmｘH13mm
Standard length：2000mm
Ref.Weight：2.4kg/m

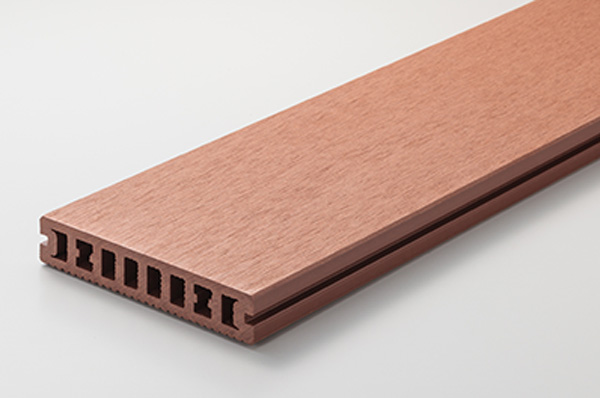

Product No.：MKV04-145*25S
Size：W145mmｘH25mm
Standard length：2000mm
Ref.Weight：3.1kg/m

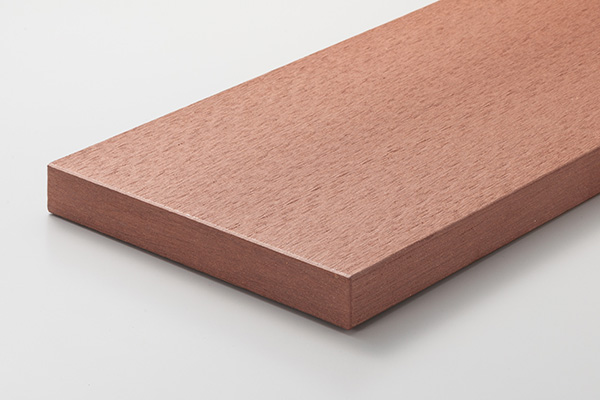

Product No.：MKV05-200*26M
Size：W200mmｘH26mm
Standard length：2000mm
Ref.Weight：6.45kg/m

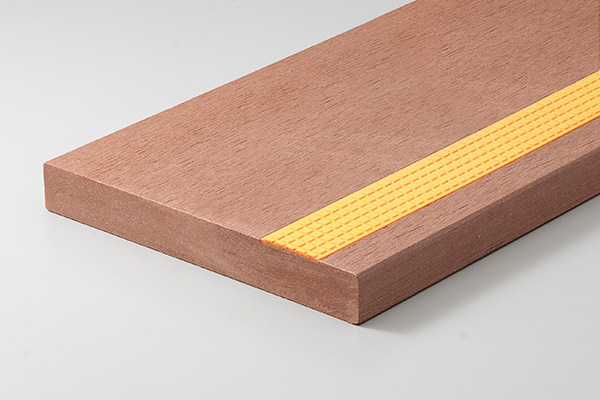

Product No.：MKV05-200*26M*SD
*Non-slip type
Size：W200mmｘH26mm
Standard length：2000mm
Ref.Weight：6.45kg/m

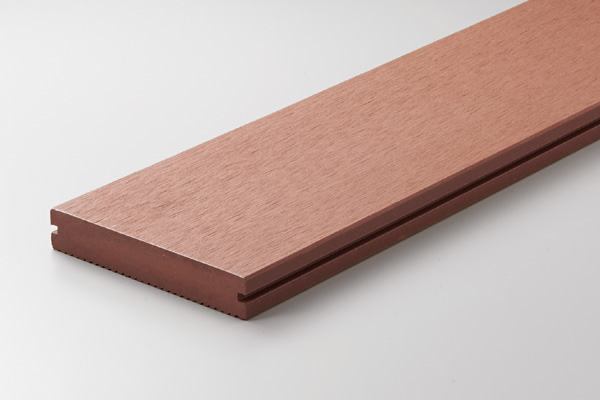

Product No.：MKV06-145*25M
Size：W145mmｘH25mm
Standard length：2000mm
Ref.Weight：4.5kg/m

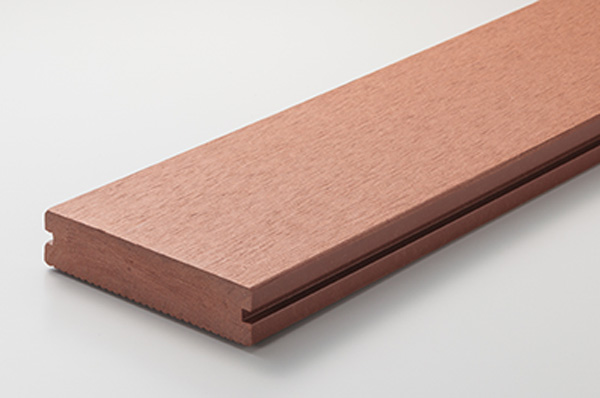

Product No.：MKV07-145*30M
Size：W145mmｘH30mm
Standard length：2000mm
Ref.Weight：5.4kg/m

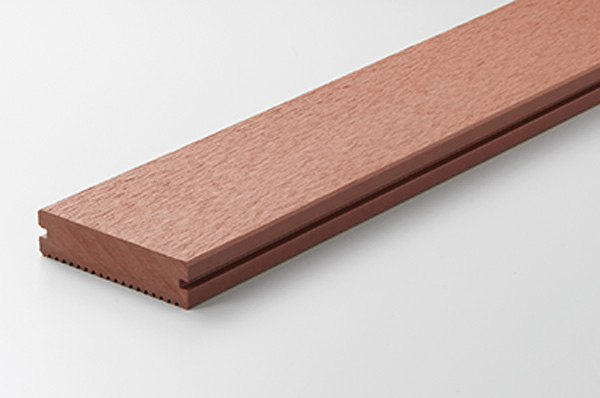

Product No.：MKV08-100*25M
Size：W100mmｘH25mm
Standard length：2000mm
Ref.Weight：3.18 kg/m

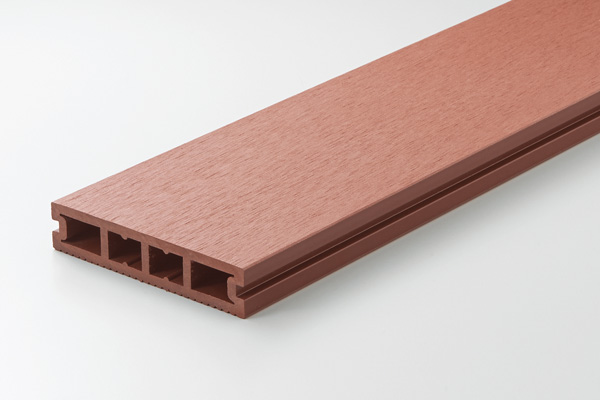

Product No.：MKV14-145*30SS
Size：W145mmｘH30mm
Standard length：2000mm
Ref.Weight：3.05kg/m

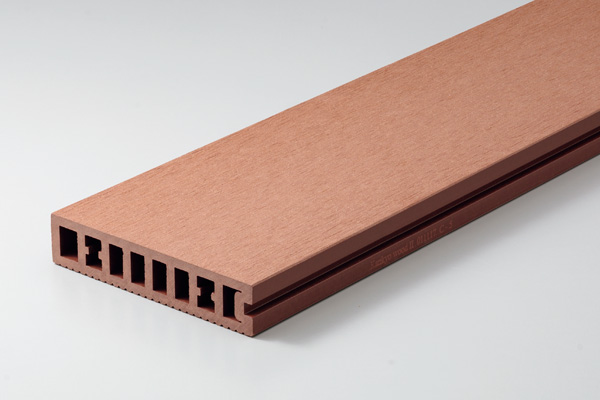

Product No.：MKV21-145*25SK
One side slit
Size：W145mmｘH25mm
Standard length：2000mm
Ref.Weight：2.90kg/m
Product No.：MKV22-145*30SK
One side slit
Size：W145mmｘH30mm
Standard length：2000mm
Ref.Weight：3.60kg/m

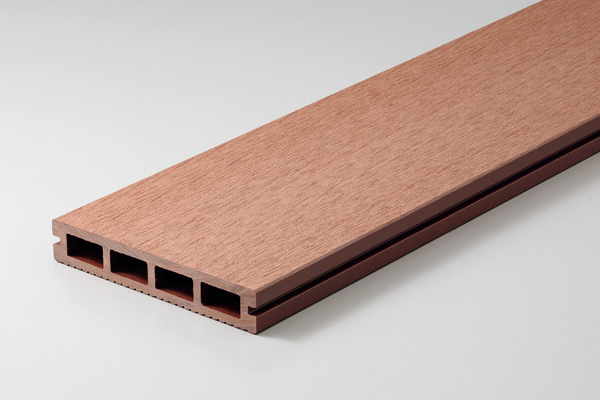

Product No.：MKV23-145*25SS
Size：W145mmｘH25mm
Standard length：2000m
Ref.Weight：2.70kg/m
Louver / Fence / Wall

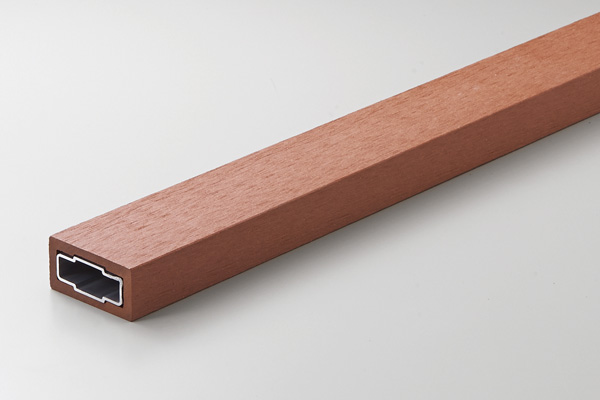

Product No.：
MKV09-60*30SA5 (With aluminum core)
MKV09-60*30S (Without alminum core)
Size：W60mmｘH30mm
Standard length：2000mm
Ref.Weight：
1.6kg/m (With aluminum core 47.7×19.1×1.5t)
1.1kg/m (Without aluminum core)
※To be produced by order

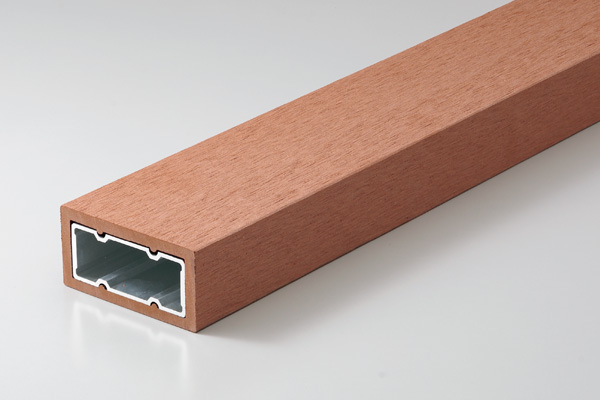

Product No.：
MKV10-90*45SA7 (With aluminum core)
MKV10-90*45S (Without alminum core)
Size：W90mmｘH45mm
Standard length：2000mm
Ref.Weight：
3.2kg/m (With aluminum core 76x31x2.0t)
1.9kg/m (Without alminum core)
※To be produced by order

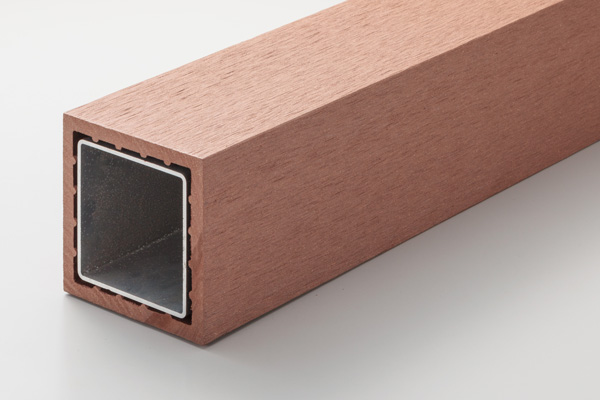

Product No.：
MKV11-90*90SA8(With aluminum core)
MKV11-90*90 (Without alminum core)
Size：W90mmｘH90mm
Standard length：2000mm
Ref.Weight：
5.6kg/m (With aluminum core 74x74x3.2t)
3.0kg/m (Without aluminum core)
※To be produced by order

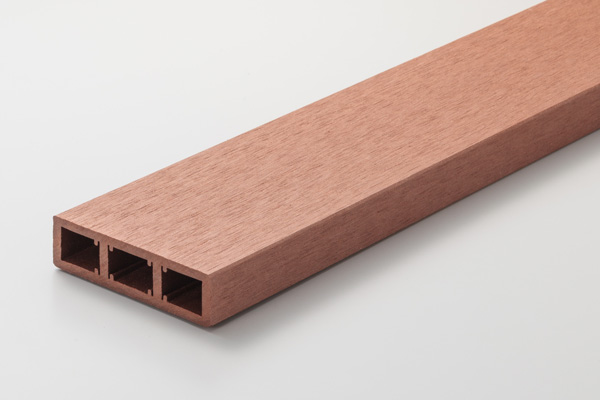

Product No.：MKV12-100*25SL
Size：W100mmｘH25mm
Standard length：2000mm
Ref.Weight：1.6kg/m

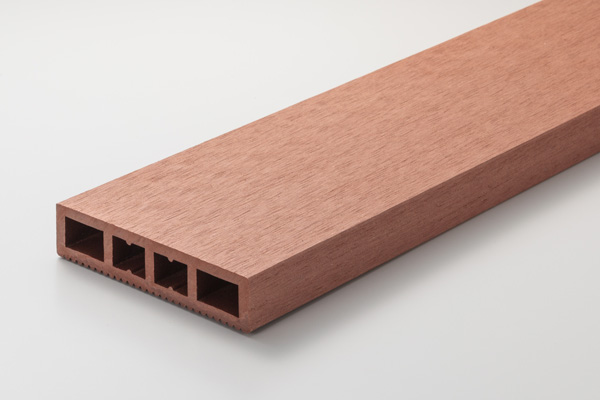

Product No.：MKV13-145*30SL
Size：W145mmｘH30mm
Standard length：2000mm
Ref.Weight：3.10kg/m

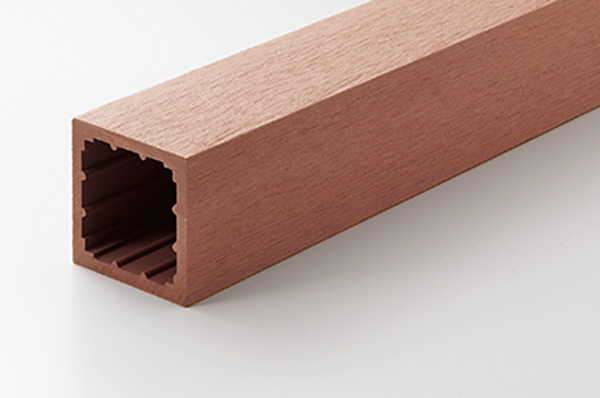

Product No.：MKV15-80*80S
Size：W80mmｘH80mm
Standard length：2000mm
Ref.Weight：2.95kg/m

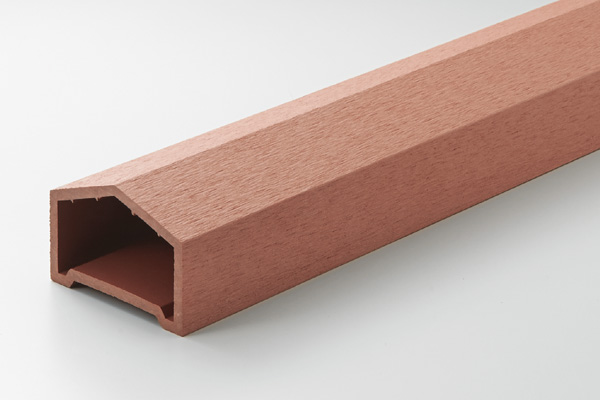

Product No.：MKV16-100*70S
Size：W100mmｘH70mm
Standard length：2000mm
Ref.Weight：2.35kg/m

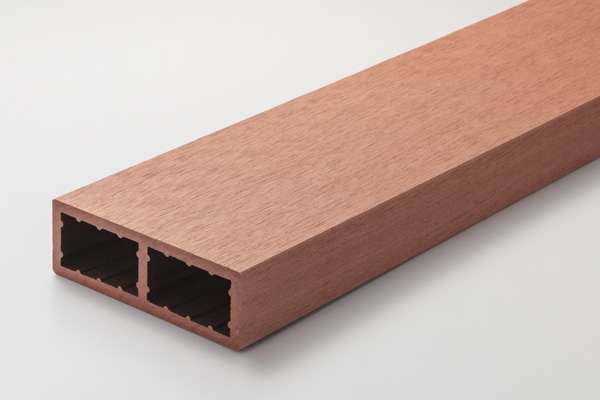

Product No.：MKV17-150*50S
Size：W150mmｘH50mm
Standard length：2000mm
Ref.Weight：3.82kg/m

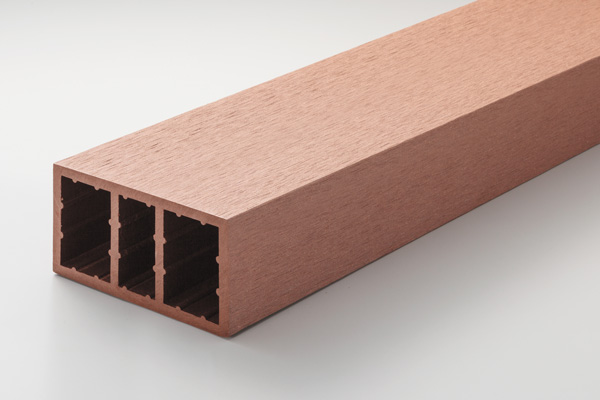

Product No.：MKV18-150*75S
Size：W150mmｘH75mm
Standard length：2000mm
Ref.Weight：5.14kg/m

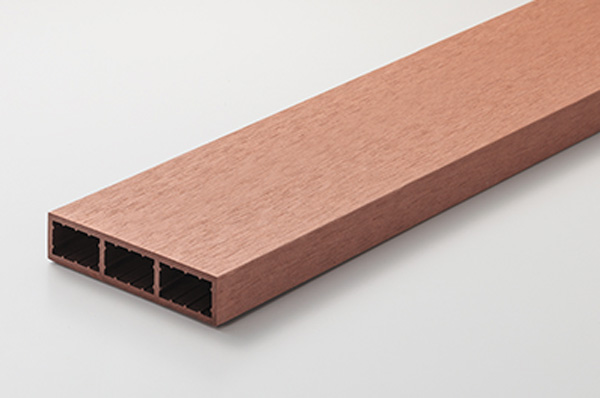

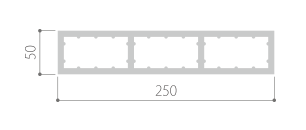

Product No.：MKV19-250*50S
Size：W250mmｘH50mm
Standard length：2000mm
Ref.Weight：5.95kg/m

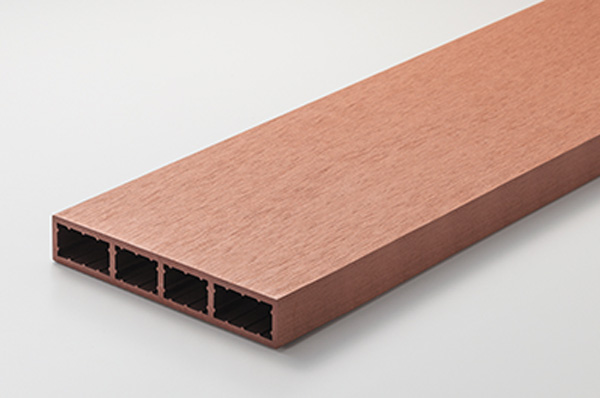

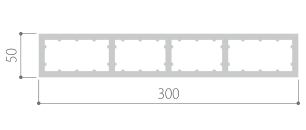

Product No.：MKV20-300*50S
Size：W300mmｘH50mm
Standard length：2000mm
Ref.Weight：7.10kg/m

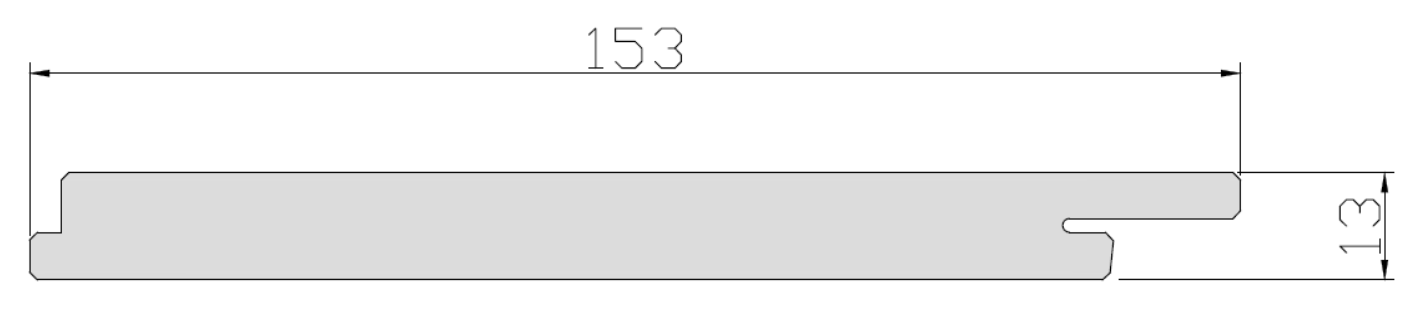

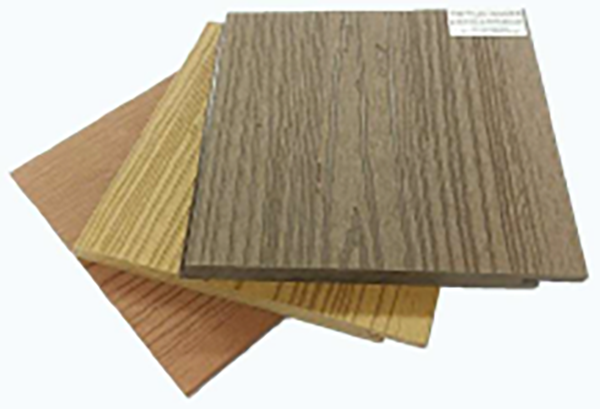

Product No.：MKV24-150*13W
Size：W150mm x H13mm
Standard length：2000mm
Ref.Weight：4.8kg/pc
Color Samples
Parts
Clip
Clip for 30mm height
MKV-Tomegu30S
30mm clips +Screw for metal joist for Deck
Material：Plastic base + Metal plate
Clip for 25mm height
MKV-Tomegu25
25mm clip +Screw for metal joist for Deck
Material：Plastic base + Metal plate

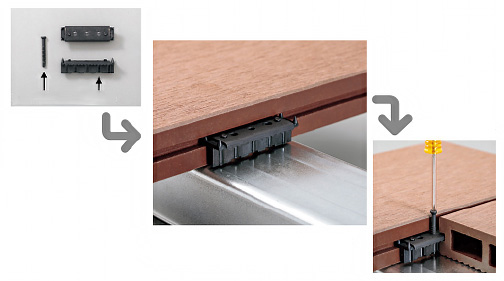

Clip installation procedure
Designated Screw Clip
Install clips at the interesection of deck
and joist firmly.
Fix with screws.
End cap
End cap for MKV09
MKV-CAP-60*30
End cap for MKV10
MKV-CAP-90*45
End cap for MKV21 and MKV23
MKV-CAP-145*25
End cap for MKV13, MKV14 and MKV22
MKV-CAP-145*30
End cap installation procedure
Adhesive surface
(Adhesive for PP/PE)
Cap
Screw
Adhesion
Fasten by a screw
Inner Aluminum core
* Be sure to drill a pilot hole when fixing with scerws.
